DESCRIPTION

Basic Info

Model NO.	CW-400V2
Sealing & Cutting	Heat-Sealing Heat-Cutting
Layer	Single
Machine Type	Sealing Machine
Computerized	Computerized
Type	Plastic Bag Making Machine
Certificate	Ce, SGS
Patent	Techinical of Machines
Servo	Yaskawa
PLC	Panasonic
Touch Screen	Weinview
Transport Package	Wooden Pallet Package
Specification	servo motor system
Trademark	CHOVYTING
Origin	China
HS Code	84778000
Production Capacity	200sets/Year

Product Description

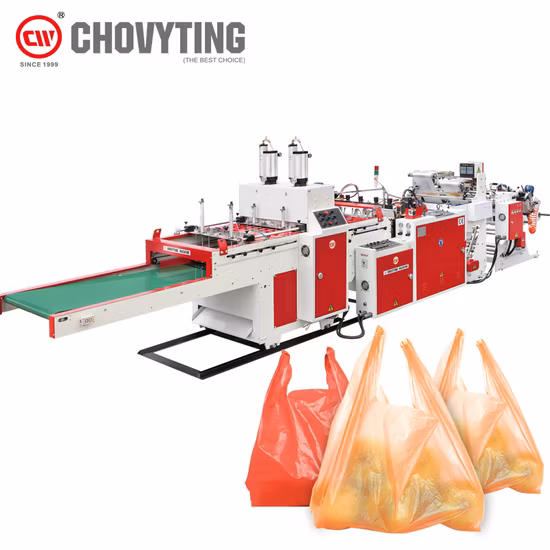

High speed T-Shirt Bag Making Machine

New designed super high speed T-shirt bag making machine, is specially for making T-shirt bags, which is two lines or three lines production and with top-technology servo motor driving. (there have no double photocell tracking for three lines production )



T-Shirt Bag Making Machine Feature:
1. Active type of unwinding tension, fully automatic control.
2. Two lines or there lines temperature control independently.
3. Turnover sealing knife, humanized design
4. The whole set of bags has design of swaying, no paste between two bags mouth.
5. Fully automatic tacking of whole set and the smooth and nail-stack design.

Model	CW-400V2
Length of bag making	300-600mm
With of bag making	400mm
Width of jumbo roll	400mm(heat slitting is 800mm)
Set film dragging speed	100M/min
Machine speed	250pcs× 2/min
Total power	about 9.5KW
Machine weight	2300kg
Machine dimension	8000X1200X1800mm

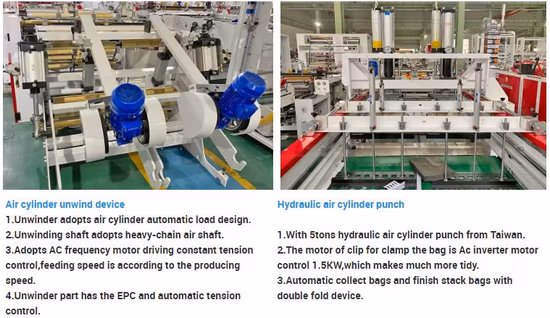

Unwinder
1.unwinder adopts air cylinder automatic load design. ,max.diameter of the unwinder is 700mm.
2. Adopts AC frequency motor driving constant tension control,feeding speed is according to the producing speed.
3. Unwinding shaft adopts heavy-chain air shaft.

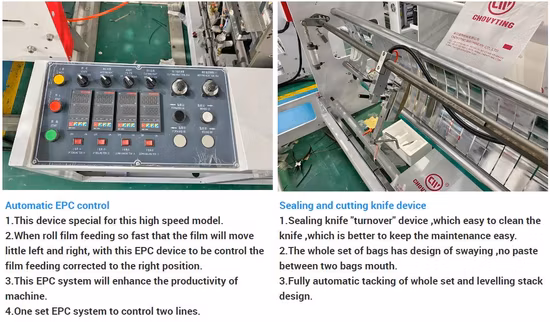

4. Unwinder part has the EPC and automatic tension control.
5. Automatic stop design when rolls film finish or damage.Sealing and cutting knife device

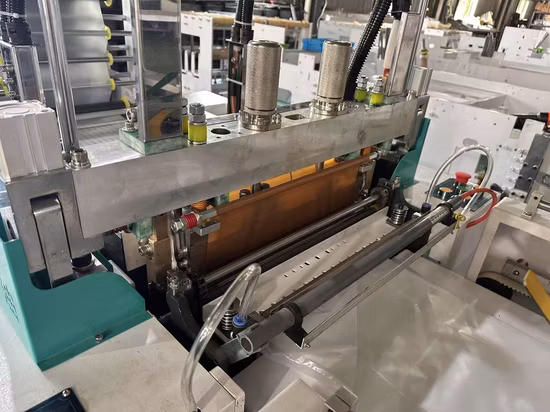

1. Sealing knife with 90 degree "turnover" device ,which easy to clean the knife ,which is better to keep the maintenance easy
2. The whole set of bags has design of swaying ,no paste between two bags mouth (ITALY DESIGN)
3. Fully automatic tacking of whole set and levelling stack design Automatic collect table1)Collect table adopts automatic collecting bag feeding.2)With gripper device,which is controlled by a AC inverter motor 1.5kw,which makes bag much more tidy.
